What is Tempered Glass and Why it is Essential for Project Managers

The Project Manager’s Imperative: Balancing Safety and Security Specifications

Project managers operate at the nexus of building code compliance, occupant safety, and stringent client security requirements. Understanding glazing materials is foundational to project success and effective risk mitigation. Code adherence often dictates the use of safety glazing in specific building areas. However, a deeper understanding of material properties is essential for addressing advanced security concerns. This knowledge allows managers to move beyond basic compliance toward true facility resilience.

Setting the Stage: Understanding Tempered Glass as a Foundational Material

Tempered glass holds a unique position in construction due to its enhanced safety characteristics. It is a critical component where human safety from glass impact or breakage is paramount. Its widespread use in modern architecture underscores its importance as a foundational building material. Building regulations often mandate tempered glass for specific installations to ensure occupant safety.

The Strategic Pivot: Beyond Basic Safety to Advanced Protection

Tempered glass offers improved safety over annealed glass due to its unique fragmentation pattern. This characteristic introduces specific considerations regarding asset security and facility protection.

Recognizing these inherent properties and failure modes is the first step toward comprehensive protection. This understanding enables project managers to pivot from basic safety codes to advanced, engineered solutions. Such strategies allow for truly securing a facility while meeting necessary building requirements.

What is Tempered Glass? Defining a Critical Construction Material

Beyond Basic Glass: Distinguishing Tempered from Annealed and Heat-Strengthened Glass

To appreciate the unique role of tempered glass, it is crucial to differentiate it from other common glass types.

Annealed Glass: This is standard, untreated glass. When broken, it fractures into large, sharp, jagged shards, posing significant laceration hazards. It offers minimal resistance to impact.
Heat-Strengthened Glass: This glass undergoes a similar thermal tempering process but is cooled more slowly. It is approximately twice as strong as annealed glass and breaks into larger pieces than tempered glass, but generally smaller and less sharp than annealed glass. It is often used in applications where increased strength is needed, but the characteristic breakage pattern of tempered glass is not desirable.
Tempered Glass: Also known as toughened glass, this material is engineered through a severe thermal process that drastically alters its mechanical properties, making it several times stronger than annealed glass. Its distinctive failure mode is a key safety feature. Understanding what is tempered glass made of and how it performs is vital for project specifications.

The Core Principle: Engineered Strength Through Controlled Stress Application

The exceptional strength and safety characteristics of tempered glass are not intrinsic to its chemical composition but are engineered through a precise manufacturing process. This process deliberately introduces a state of permanent compressive stress on the glass’s surfaces and corresponding tensile stress within its core. This internal stress profile is the fundamental mechanism behind its superior resistance to impact and thermal shock.

Key Characteristics and Primary Applications in Modern Construction

The unique properties of tempered glass make it indispensable in numerous construction applications.

Key Characteristics:

Enhanced Strength: Tempered glass is typically four to five times stronger than annealed glass of the same thickness, offering superior resistance to impact from blunt force and thermal stress.
Safe Breakage Pattern: Upon failure, tempered glass shatters into small, relatively blunt, pebble-like pieces, significantly reducing the risk of serious injury compared to the large, sharp shards of annealed glass. This is its defining safety feature.
Post-Process Inalterability: Due to its inherent stress patterns, tempered glass cannot be cut, drilled, or altered in any way after the tempering process. All fabrication must occur beforehand.

Primary Applications in Construction:

Doors and Windows: Commonly used in entry doors, sliding glass doors, and windows in high-traffic areas or those close to the ground, adhering to safety glazing codes.
Interior Applications: Shower and bathtub enclosures, glass partitions, balustrades, and shelving.
Architectural Features: Skylights, sloped glazing, and certain curtain wall systems where enhanced strength and safety are required.
Automotive: Side and rear windows in vehicles.

The Step-by-Step Thermal Tempering Process: From Float Glass to Safety Glazing

The transformation of ordinary float glass into robust safety glazing is a precise, high-temperature manufacturing sequence that dictates its final properties. This thermal tempering process is central to creating its unique characteristics.

Preparing the Raw Material: The Journey Begins with High-Quality Float Glass

The tempering process commences with the selection of high-quality float glass, known for its uniform thickness, smooth surfaces, and optical clarity. Prior to heat treatment, these glass sheets are cut to the exact dimensions required for their final application. All necessary edge work, polishing, drilling, or notching must be completed at this stage, as the glass cannot be modified once tempered.

Precision Heating: Bringing Glass to its Plastic State

The prepared glass sheets are then meticulously conveyed into a tempering oven. Inside this specialized furnace, the glass is heated uniformly to an elevated temperature, typically around 1,150°F (620°C). This temperature is carefully controlled and held just below the glass’s softening point, where it becomes pliable or plastic, enabling the subsequent stress induction.

The Quenching Phase: Rapid Cooling and the Induction of Thermal Stress

Immediately after reaching the desired temperature, the heated glass is rapidly and uniformly cooled through a process known as quenching. High-pressure air jets are directed at both surfaces of the glass. The exterior surfaces cool and solidify almost instantaneously, contracting and becoming rigid. In contrast, the interior core of the glass cools much more slowly, remaining in a molten, expansive state for a longer period. As the interior eventually cools and attempts to contract, it is constrained by the already rigid, solidified exterior. This differential cooling induces a state of permanent, significant compressive stress in the surface layers of the glass and corresponding tensile stress in its core.

The Science Behind the Strength: How Compression and Tension Create Resilient Glass

The engineered strength of tempered glass results directly from opposing internal forces. Induced surface compression acts as a protective barrier against external impacts. An external force must first overcome this substantial layer of compressive stress to cause a fracture. This powerful balance between the compressed exterior and tensioned core grants exceptional resistance to breakage. When it fails, the glass disintegrates into characteristic small, relatively harmless fragments. This failure mode prevents the dangerous, large shards associated with traditional annealed glass.

The Inherent Weakness: Spontaneous Breakage and the Limits of Stand-Alone Protection

While the manufacturing process imbues tempered glass with significant strength and a safety-conscious failure mode, it is not without inherent limitations. Understanding these vulnerabilities is crucial for any project manager evaluating glazing specifications for asset protection. The very stresses engineered into tempered glass for strength can, under certain conditions, lead to unexpected failure.

Unpacking Spontaneous Breakage: Causes, Prevalence, and Operational Impact

Spontaneous breakage in tempered glass refers to unexpected fracture without direct external impact. This phenomenon, while statistically rare, poses a significant operational and safety concern. The primary cause is nickel sulfide (NiS) inclusions within the glass. During the tempering process, these microscopic NiS particles, if present, transform into a high-temperature crystalline phase. As the glass cools, they revert to its lower-temperature phase, but this change is not instantaneous and can occur slowly over time, causing a volumetric expansion. This expansion creates localized stresses that can exceed the tensile strength of the glass, leading to sudden, unprovoked fracture.

The operational impact of spontaneous breakage extends beyond the immediate safety hazard of falling glass shards. It necessitates costly and disruptive glass replacement, potential project delays, and can damage the reputation of a building or project. For facilities requiring stringent security or operational continuity, such unpredictable failures introduce unacceptable risks.

The “All or Nothing” Failure Mode: Why Shattering Can Present New Risks

The signature granular fracture of tempered glass is designed to minimize injury from sharp shards. However, this “all or nothing” failure mode presents a distinct set of challenges, particularly in security-sensitive applications. When tempered glass breaks, it instantly shatters into thousands of small, disconnected fragments. This complete disintegration, while reducing laceration risk, also eliminates any remaining structural integrity or barrier function.

Consider a scenario involving an attempted forced entry or a ballistic threat. Once compromised, a tempered glass pane offers no residual resistance. The entire opening becomes immediately and completely exposed. Unlike annealed or laminated glass which may crack or hold together, tempered glass offers no post-breakage barrier. This rapid and total failure can provide instant access for intruders, expose occupants to hazards, or compromise environmental controls, rendering the opening completely vulnerable.

The Misconception of Invincibility: Where Tempered Glass Falls Short in Dedicated Security Scenarios

There is often a misconception that tempered glass, due to its enhanced strength, equates to superior security. While it is more resistant to initial impacts than annealed glass, this resistance has definite limits. Its strength is primarily in its ability to resist blunt force over a broad area, not necessarily targeted, high-energy attacks, or sustained assault.

In dedicated security scenarios, such as those protecting high-value assets, critical infrastructure, or vulnerable populations, tempered glass alone falls critically short. Its fundamental design prioritizes safety upon breakage, not sustained barrier protection after an attack. For threats ranging from smash-and-grab burglaries to active shooter events, the complete disintegration of tempered glass upon impact means that it acts as a very temporary deterrent at best, and offers no prolonged resistance once its integrity is breached. Relying solely on tempered glass in these contexts leaves a significant security gap, failing to provide the layered defense necessary for true asset protection.

Bridging the Security Gap: Why Tempered Glass Alone Isn’t Enough for Asset Protection

The limitations of tempered glass, particularly its “all or nothing” failure mode and susceptibility to spontaneous breakage, highlight a crucial distinction between safety glazing and true security glazing. While tempered glass meets specific life safety codes, it does not inherently provide robust asset protection against determined threats.

Evaluating Real-World Security Demands: Beyond Standard Building Codes

Standard building codes typically mandate safety glazing in specific applications to mitigate injury from accidental impact or breakage. Tempered glass effectively meets these requirements. However, real-world security demands often extend far beyond these basic standards. Clients frequently require protection against sophisticated threats such as:

Forced Entry: Deterring or delaying unauthorized access through windows.
Vandalism: Resisting impact from objects thrown at the glass.
Blast Mitigation: Protecting occupants from the effects of explosive devices.
Ballistic Resistance: Withstanding penetration from firearms.
Environmental Extremes: Maintaining integrity during severe weather events or seismic activity.

For these heightened security needs, simply specifying tempered glass is insufficient. Its primary role in these scenarios becomes more about initial impact resistance before its complete failure, rather than providing a sustained barrier. A comprehensive security strategy requires glazing solutions that maintain their structural integrity even after impact.

Vulnerabilities Exposed: From Forced Entry Attempts to Environmental Stressors

The inherent characteristics of tempered glass leave it vulnerable across several critical dimensions when considering comprehensive asset protection:

Forced Entry: A determined intruder, using even simple tools like a hammer or pry bar, can rapidly breach a tempered glass pane. Once shattered, the opening is immediate and complete, allowing unfettered access. The time delay offered by tempered glass is minimal, far less than what is needed for security response.
Ballistic Threats: Tempered glass offers virtually no ballistic resistance. A single round from most firearms will cause immediate and complete fragmentation, creating a clear line of sight and entry point.
Blast Events: While tempered glass can resist some initial pressure, a significant blast wave will cause it to shatter into countless fragments that can become hazardous projectiles, offering no post-blast barrier or protection from the elements.
Environmental Stressors: Beyond the risk of spontaneous breakage, extreme weather conditions like high winds carrying debris or seismic events can easily overwhelm the fracture threshold of tempered glass, leading to widespread and immediate failure across an entire façade.

In each of these scenarios, the rapid, complete failure of tempered glass compromises the security envelope of a facility, exposing occupants and assets to immediate risk.

Project Manager Paul’s Dilemma: Meeting Elevated Client Security Expectations with Basic Tempered Glass

Project Manager Paul is often tasked with balancing budgetary constraints with client expectations, especially when security is a high priority. While tempered glass is a cost-effective solution for meeting basic safety codes, relying on it for elevated security requirements places Paul in a difficult position.

Clients seeking “secure” buildings often have a baseline expectation of protection against common threats. If Paul specifies only tempered glass without additional enhancements, he risks:

Under-delivering on unstated security expectations: Clients may assume “stronger glass” means “more secure glass,” leading to disappointment and potential liability if an incident occurs.
Compromising asset protection: Critical assets or occupants remain vulnerable to forced entry, ballistic, or blast events.
Costly retrofits: Addressing security deficiencies after construction is significantly more expensive and disruptive than integrating solutions during the design phase.
Reputational damage: Failing to meet implied or explicit security needs can harm professional standing and future project opportunities.

Paul’s dilemma underscores the need for a nuanced understanding of glass performance. While tempered glass provides a foundational safety element, it necessitates strategic augmentation to truly meet and exceed client demands for robust security.

Augmenting Strength: Where Security Film Meets Tempered Glass for Superior Protection

While the inherent strength and controlled breakage of tempered glass offer significant advantages over standard annealed glass, a critical examination reveals its limitations in true security applications. The very characteristic that makes it safer, shattering into small, blunt fragments, also means that the glass façade can be entirely compromised with relative ease upon impact. This is where advanced security film technology steps in, transforming tempered glass into a formidable component of a comprehensive security strategy.

Introducing Advanced Film Technology: A Strategic Enhancement for Existing Glazing

Advanced security window films represent a strategic enhancement, not a replacement, for existing glazing systems, including tempered glass. These films are typically multi-layered polyester laminates engineered to bond tenaciously to the glass surface. Their primary function is to hold glass fragments together upon impact, effectively maintaining the integrity of the window pane even after the glass itself has fractured. This turns a vulnerable point of entry into a robust barrier.

The Synergy of Materials: How Film Transforms Tempered Glass Performance Characteristics

The application of security film fundamentally alters the performance characteristics of tempered glass, creating a powerful synergy. Instead of the “all or nothing” fragmentation pattern, the film acts as a flexible, high-tensile membrane. When tempered glass breaks, the film contains the myriad small pieces, preventing them from scattering and forming a large, unprotected opening. This containment capability is crucial for both safety and security, as it denies rapid access and mitigates hazards from flying shards.

Understanding Security Film Categories: From Impact Protection to Advanced Blast Mitigation Film Capabilities

The realm of security film is diverse, with specific categories designed to address various threat profiles. Understanding these distinctions is key to specifying the appropriate solution for project demands.

Impact Protection Films: These are generally thinner films focused on reducing injury from everyday impacts or spontaneous glass breakage. They primarily hold glass together to prevent shard dissemination.
Forced Entry Deterrent Films: Thicker and often featuring multiple layers, these films are engineered to significantly delay intruders. They absorb and dissipate impact energy, requiring sustained, aggressive force to create a breach, thus increasing response time for security personnel.
Blast Mitigation Films: At the apex of security film technology, these robust systems are designed to withstand high-energy events such as explosions. They are typically thicker, often paired with specialized attachment systems that anchor the film and glass directly to the window frame, ensuring the entire glazed system remains largely intact post-blast. This prevents dangerous flying glass projectiles and maintains the building envelope.

Optimizing Protection: How Security Film Transforms Tempered Glass Performance

The integration of security film dramatically optimizes the protective capabilities of tempered glass, addressing its inherent vulnerabilities and extending its utility across a broader spectrum of threats. This transformation delivers tangible benefits for asset protection and occupant safety.

Mitigating the “All or Nothing” Breakage: Containing Shattered Fragments Post-Impact

As established, tempered glass is designed to break into numerous small, relatively harmless pieces. However, this mode of failure leaves a large, instantaneous opening, offering no resistance to entry and creating a sudden environmental breach. Security film directly mitigates this “all or nothing” breakage. Upon impact, the film adheres to and holds these small fragments together, maintaining a continuous barrier. This prevents an open portal, retains the thermal envelope, and significantly reduces the risk of injury from flying glass.

Enhancing Anti-Intrusion Capabilities: Delaying and Deterring Forced Entry Attempts

For project managers focused on securing facilities against unauthorized access, the anti-intrusion capabilities afforded by security film are paramount. When applied to tempered glass, security film transforms it from a brittle barrier into a resilient one. An intruder attempting to smash through film-augmented tempered glass will find that even though the glass itself may fracture, the film resists penetration, holding the broken glass firmly in place. This greatly increases the time, effort, and noise required to create an opening, turning a quick smash-and-grab into a prolonged, detectable event. The added delay is often sufficient to deter assailants or allow security personnel to respond effectively.

Beyond Physical Security: Addressing Environmental Safety and Operational Continuity

The benefits of security film extend beyond deterring malicious acts. Its ability to maintain the integrity of the glass pane post-impact contributes significantly to environmental safety and operational continuity. In scenarios involving severe weather, accidental impacts, or even internal incidents, the film prevents glass from shattering inward or outward. This preserves the building’s environmental seal, protecting interiors from weather elements, maintaining HVAC efficiency, and containing potentially hazardous materials. For critical infrastructure or commercial operations, avoiding immediate facility shutdown due to shattered glass can translate into substantial cost savings and uninterrupted service.

Leveraging 3M Innovation: Technical Specifications, Testing Data, and Performance Validation

For project managers requiring validated performance, leveraging solutions from industry leaders like 3M is crucial. 3M security films are engineered with proprietary multi-layer constructions, developed through extensive research and development. These films are subjected to rigorous independent testing to meet and exceed stringent industry standards. This includes adherence to specifications from organizations such as ASTM International (for example, ASTM F1642 for glazing and fenestration systems subject to airblast loadings) and government-level standards (for example, GSA TS01 for blast protection). Detailed technical specifications, comprehensive testing data, and verifiable performance validation provide project managers with the objective evidence needed to confidently select and specify solutions that meet precise threat mitigation requirements.

Meeting Security Demands: Key Specifications and Standards for Project Integration

Successfully integrating security film into a project requires a thorough understanding of available solutions and meticulous attention to specification and installation. This ensures that the chosen system effectively meets the client’s security demands and performs reliably throughout its lifecycle.

Specifying the Right Solution: Matching Film Type and Thickness to Threat Level and Application

The process of specifying security film must begin with a comprehensive threat assessment and a clear understanding of the application’s unique requirements. This assessment should define the specific security objectives, whether they involve basic impact protection, forced entry deterrence, or advanced blast mitigation. Film thickness is a primary determinant of performance, with films ranging from 4 mil for basic safety and impact protection to 21 mil or more for extreme blast scenarios. Consideration must also be given to:

Building Code Requirements: Local building codes may mandate specific safety glazing in certain areas.
Occupancy Type: Different occupancy classifications (for example, schools, government buildings, commercial offices) often dictate varying levels of required security.
Aesthetic Considerations: While security is paramount, visual clarity and light transmission are also important factors.

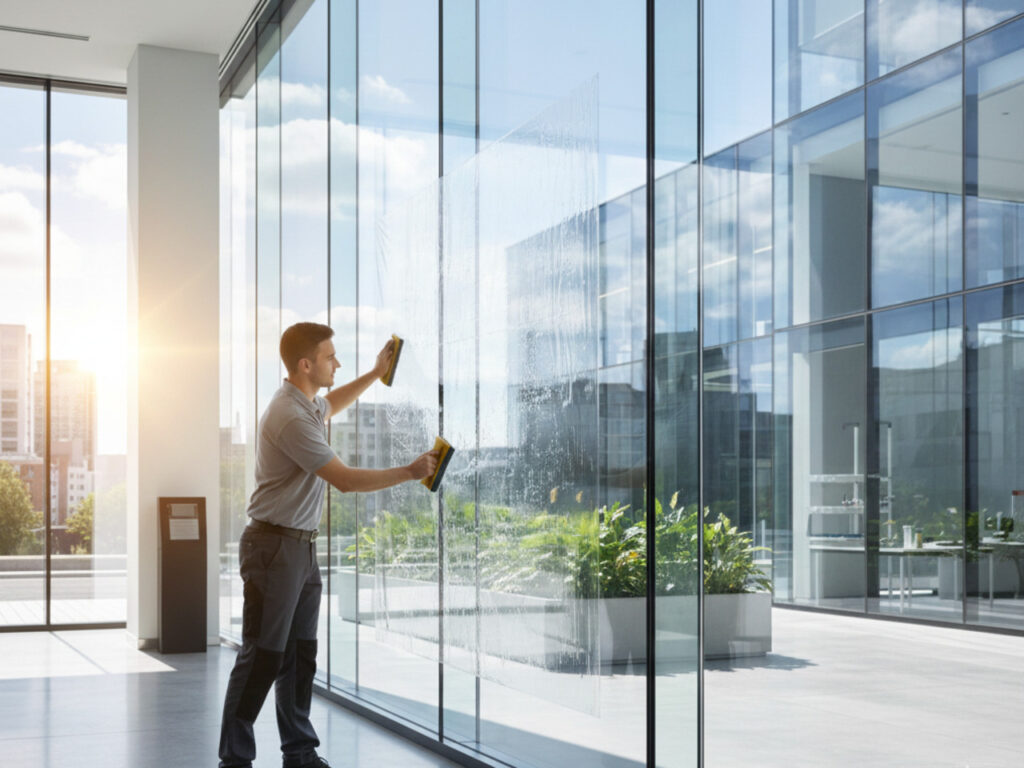

Installation Best Practices: Ensuring Optimal Adhesion, Edge Retention, and Long-Term Performance

Even the highest quality security film will underperform if not installed correctly. Professional installation is not merely a recommendation, it is an absolute necessity for ensuring optimal adhesion, critical edge retention, and thus, long-term performance. Key best practices include:

Thorough Surface Preparation: Glass must be immaculately clean and free of contaminants to allow for complete, uniform adhesion.
Precise Cutting and Application: Films must be cut accurately to fit the glass, with no gaps or overlaps that could compromise integrity.
Proper Curing Time: The adhesive requires a specific curing period to bond fully and reach its maximum strength.
Anchoring Systems: For forced entry and blast mitigation film applications, mechanical or structural attachment systems (for example, wet glaze, frame anchors) are often indispensable. These systems secure the film and the captured glass to the window frame, preventing the entire pane from being dislodged after a severe impact.

Long-Term Performance and Maintenance Considerations for Augmented Glass Systems

Security film solutions are designed for longevity, typically backed by comprehensive manufacturer warranties that can range from 10 to 15 years, or even longer for interior applications. Once installed, these augmented glass systems require minimal maintenance, largely mirroring the care routine for standard windows. Regular cleaning using non-abrasive cleaners and soft cloths is sufficient. It is important to avoid harsh chemicals or sharp implements that could damage the film surface. Periodic visual inspections can help identify any potential issues, though the robust nature of these films means performance degradation is uncommon within the warranted period.

Strategic Comparisons: Tempered Glass with Film vs. Laminated Glass for Different Security Needs

When evaluating glass security options, a common comparison arises between tempered glass augmented with security film and laminated glass. Both offer enhanced safety over monolithic annealed glass, but their performance characteristics and suitability for specific applications differ. This comparison is vital when considering tempered glass vs laminated glass.

Tempered Glass with Security Film:
- Advantages: Excellent for retrofitting existing tempered glazing, often more cost-effective for upgrades, maintains the controlled breakage characteristic of tempered glass while preventing fragmentation and creating a robust barrier against intrusion and blast. Can be specified in varying thicknesses to match threat levels.
- Considerations: Performance heavily reliant on the quality of film and installation, including any necessary edge-retention systems.
Laminated Glass:
- Advantages: Manufactured with an interlayer (typically PVB or SentryGlas) bonded between two or more panes of glass, providing inherent resistance to penetration and holding broken glass fragments in place. Offers superior sound attenuation and UV protection.
- Considerations: Generally heavier and thicker than tempered glass with film, more expensive as a new installation, and its security performance is determined at the point of manufacture, less adaptable to variable threat profiles post-production.

The choice between these systems depends on factors such as the existing infrastructure, the specific threat profile, budget constraints, and aesthetic requirements. For many retrofit projects and situations requiring adaptable security upgrades, tempered glass with high-performance security film presents a compelling and often superior solution.

Strategic Project Management: Delivering Enhanced Security and Client Confidence

Assessing Project Needs: Identifying Critical Areas for Tempered Glass Augmentation

Effective project management requires a nuanced understanding of building materials and their inherent limitations. While tempered glass is a standard for safety glazing in many applications due to its controlled breakage, relying solely on it for security can introduce significant vulnerabilities. Project managers must strategically assess areas where this characteristic, shattering into small, blunt fragments, presents an unacceptable security risk. This includes ground-level windows, public-facing entrances, areas protecting high-value assets, or any zone requiring enhanced resistance to forced entry, vandalism, or potential ballistic threats. Identifying these critical points early in the planning phase allows for proactive specification of security augmentations.

The Value Proposition: Exceeding Baseline Requirements for Advanced, Cost-Effective Protection

Building codes typically mandate tempered glass for specific safety reasons, primarily to reduce injury risk upon accidental breakage. However, these codes generally do not address security performance against deliberate breaches. Augmenting tempered glass with advanced security window film offers a significant value proposition by moving beyond baseline safety requirements to achieve robust protection. This approach delivers enhanced security that specifically mitigates the inherent failure mode of tempered glass, preventing immediate breach without requiring the costly and time-consuming replacement of existing glazing. It provides a cost-effective solution for dramatically increasing a building’s resilience against a wide range of threats.

Collaborating with Experts: Leveraging Specialized Installer Expertise for Seamless Integration

The successful implementation of security film, especially when augmenting tempered glass, relies heavily on specialized expertise. Engaging with experienced security film installers is crucial, as their knowledge extends beyond basic application techniques. They possess a deep understanding of:

Film Selection: Matching the right security film specification to specific threat assessments and performance criteria.
Attachment Systems: Integrating mechanical or structural attachment systems that bond the film directly to the window frame, preventing the entire pane from being dislodged upon impact.
Regulatory Compliance: Ensuring that installations meet local building codes and insurance requirements while enhancing security.
Seamless Integration: Minimizing disruption to ongoing construction or facility operations during the upgrade process.

Their insights ensure the film functions as an integrated component of the glass system, transforming the glass from a simple barrier into a formidable line of defense.

The Informed Manager: How Comprehensive Glass Knowledge Elevates Your Project Delivery

A comprehensive understanding of glass properties, particularly the strengths and weaknesses of tempered glass, elevates a project manager’s ability to deliver superior outcomes. Armed with this knowledge, managers can proactively address security concerns before they escalate into costly problems. This allows for:

Strategic Planning: Incorporating advanced security measures from conception, rather than as a reactive fix.
Client Confidence: Articulating clear, data-backed recommendations that demonstrate a commitment to both safety and security.
Risk Mitigation: Identifying potential vulnerabilities in existing designs and proposing effective, proven solutions.
Enhanced Reputation: Positioning themselves as a knowledgeable and resourceful partner capable of delivering projects that meet and exceed client expectations for comprehensive asset protection.

Conclusion: True Asset Protection Begins with Understanding and Augmentation

Reaffirming the Core Argument: Tempered Glass as a Foundation, Advanced Film as the Essential Shield

Our exploration underscores a critical distinction: tempered glass is undeniably strong and contributes significantly to occupant safety by shattering into small, harmless fragments. This characteristic, however, is precisely what makes it a security vulnerability when subjected to forced entry or explosive forces, as it offers virtually no resistance to breaching. The core argument remains steadfast: tempered glass serves as a foundational component, but advanced security window film acts as the essential shield. By binding those shattered fragments together, the film maintains the integrity of the window opening, significantly delaying or preventing unauthorized access and providing crucial time in a security incident. Understanding what is tempered glass made of and how it fails is the first step toward effective mitigation.

Empowering Project Managers: Making Informed Decisions for Comprehensive Building Security

For project managers, the insights into tempered glass manufacturing and its inherent failure mode offer a powerful toolkit for making informed decisions. Moving beyond minimum code compliance to implement true security measures not only protects assets and occupants but also elevates the quality and resilience of the entire project. This strategic approach empowers managers to advocate for solutions that provide tangible, measurable security benefits, ensuring that their projects are not merely compliant but genuinely secure.

Looking Ahead: The Evolving Landscape of Glass Security Solutions and Continuous Innovation

The landscape of building security is in constant evolution, driven by new threats and technological advancements. As a result, the demands on glass performance continue to expand beyond traditional safety and aesthetics. Advanced security films represent a vital component in this evolving ecosystem, offering adaptable and continuously innovating solutions. Staying abreast of these developments and collaborating with specialized experts ensures that project managers can specify and implement the most effective, cutting-edge glass security solutions, preparing structures for the challenges of today and tomorrow.

Frequently Asked Questions

What is tempered glass made of, and how is it different from other glass types?

Tempered glass begins as standard float glass but is transformed through a thermal tempering process. It’s not about its chemical composition but rather the intense heating and rapid cooling (quenching) that introduces internal stresses, making it four to five times stronger than annealed glass. Unlike annealed glass, which breaks into sharp shards, tempered glass shatters into small, blunt pieces for safety.

How does the thermal tempering process make glass stronger?

The thermal tempering process involves heating float glass to around 1,150°F (620°C) and then rapidly cooling its surfaces with air jets. This rapid cooling causes the outer layers to contract and solidify quickly, while the slower-cooling interior remains in tension. This creates a balanced system of permanent compressive stress on the surfaces and tensile stress in the core, providing exceptional resistance to impact and thermal shock.

Is tempered glass alone sufficient for high-security applications?

No, tempered glass alone is generally not sufficient for high-security applications. While its enhanced strength and safe breakage pattern are beneficial for safety, it offers minimal sustained resistance against determined forced entry, ballistic threats, or blast events. Once broken, tempered glass completely shatters, creating an immediate and unprotected opening, which is a critical vulnerability in security-focused scenarios.

How does security film enhance the performance of tempered glass?

Security film significantly enhances tempered glass performance by addressing its “all or nothing” breakage. Upon impact, the film, typically a multi-layered polyester laminate, adheres to the shattered glass fragments, holding them together within the frame. This maintains a continuous barrier, delaying forced entry, mitigating the dangers of flying glass, and preserving the building’s envelope and environmental control after an incident.

What is the difference between tempered glass with security film and laminated glass?

Tempered glass with security film is a two-part solution where a film is applied to a pre-existing tempered pane. It offers excellent retrofit options and adapts the controlled breakage of tempered glass for security. Laminated glass, however, is a factory-produced unit with an interlayer (like PVB) bonded between two or more glass panes. It offers inherent penetration resistance and holds fragments in place, often providing better sound attenuation. The choice depends on the specific project needs, existing infrastructure, and threat profile.
